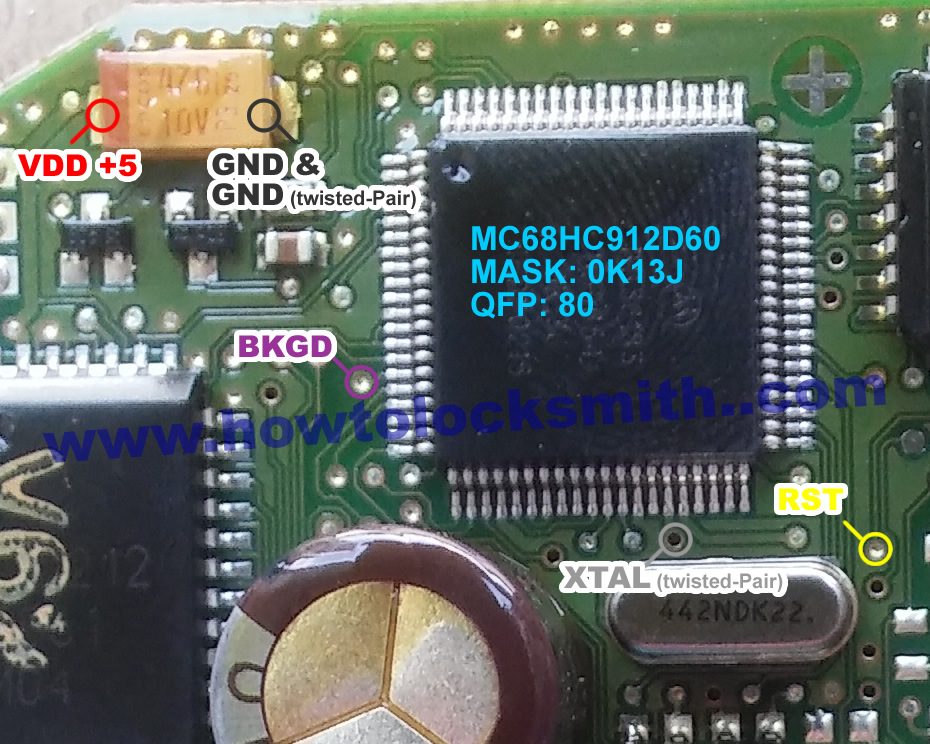

In-circuit wiring schematics for reading the 9S12D60 (qfp80) EEPROM and flash memory in MINI SRS Airbag modules. The secured chip requires a reliable programmer—my recommended tool is the original XPROG or VVDI Prog.
Pinout connections required: BKDG-15, GND-28, VCC-29, RST-30, XTAL-34
